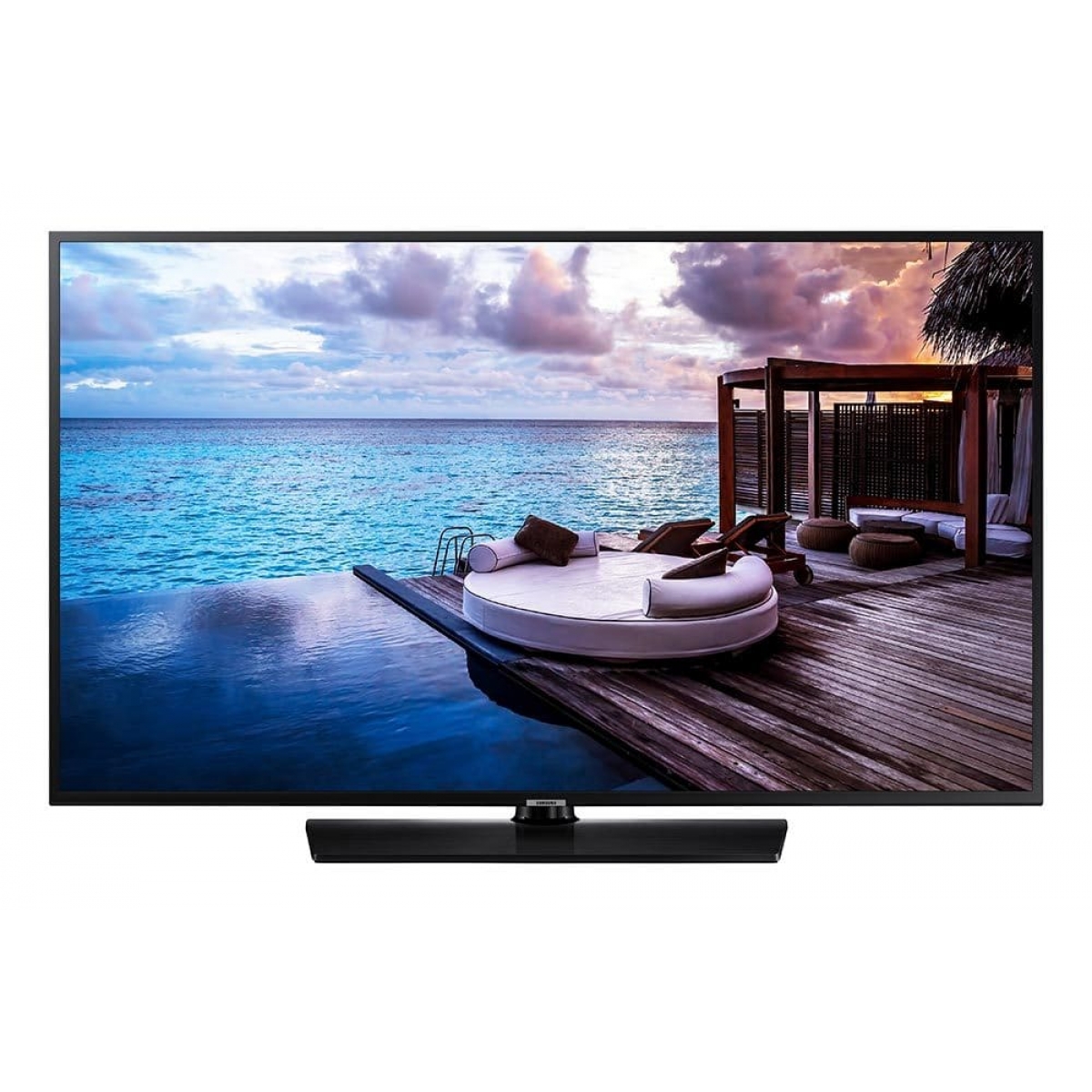

Samsung 三星 HG75AJ690UJXZK 75吋 LED 4K 智能電視

Display
Backlight
LED

Screen Size (Inch)
75"

Resolution
3840 X 2160 (4K UHD)
Video
Picture Engine
UHD Mastering Engine

Micro Dimming
UHD Dimming

Auto Motion Plus
Yes

Film Mode
Yes
Audio
Dolby Digital Plus
Yes

DTS Codec
DTS Premium Audio

Sound Output (RMS)
20W

Speaker Type
2CH

Woofer
N/A
Smart TV
Samsung SMART TV
Smart
Convergence
TV to Mobile - Mirroring
N/A

Mobile to TV - Mirroring, DLNA
Yes
General Feature
Processor
Quad-Core

Accessibility
Voice guide(UK English. Mandarin Chinese)/ Enlarge/ High contrast/ Multi-output Audio

Digital Clean View
Yes

Auto Channel Search
Yes

Auto Power Off
Yes

Caption (Subtitle)
Yes

ConnectShare™ (HDD)
Yes

ConnectShare™ (USB 2.0)
Yes

EPG
Yes

Game Mode
Yes

OSD Language
Local Languages

Picture-In-Picture
N/A

BT HID Built-in
Yes

USB HID Support
Yes

Teletext (TTX)
N/A
System
Digital Broadcasting
DTMB

Analog Tuner
Yes

CI (Common Interface)
N/A

Data Broadcasting
MHEG 5
Hospitality Feature
Samsung LYNK™ HMS Compatibility
No

H.Browser Compatibility
Yes

Samsung LYNK™REACH (IP)
REACH 4.0

Samsung LYNK™REACH (RF)
REACH 4.0

Hospitality Home Menu
Yes

Bluetooth Music Player (Mobile → TV)
Yes

Hospitality Plug&Play
(Easy Set-up)
Yes

Auto Source Mode
Yes

Power on Mode
Yes

Hotel Channel List
Yes

Channel Menu Display
Yes

Mixed Channel List
(ATSC, DVB-T/T2/C/S2, Analog)
Yes

My Channel
Yes

Energy Saving Mode (BLU control)
Yes

Logo Display with
Time Out Setting (BMP/Movie)
Yes

Welcome Message
Yes

RJ12/IR pass through
Yes

External Clock Compatibility
No

Clock Back Up Supply
Yes

External Clock Dimming Control
No

Software Clock
N/A

Multi Code Remote Control
Yes

Screwed Battery Cover
Yes

Sound bar compatibility
Yes

Music Mode
(Input : PC/AV/Component/HDMI)
Yes

Music Mode BackLight on/off
Yes

TTX Clock Update (Analogue)
No

USB Cloning
Yes

Smoovie Compatibility
Yes

Soft AP
Yes

On/Off Timer (Schedule)
Yes

Wake-up Timer (Alarm)
Yes

Samsung LYNK™ DRM
Yes

Pro:Idiom
N/A

bLAN
No

Security Mode
Yes

S/W EPG (Solution EPG)
No

IP Over Coax
No
Input & Output
USB (Side/Rear)
2.0

Composite In (AV) (Side/Rear)
1 (Common Use for Component Y)

RF In (Terrestrial / Cable input / Satellite Input)
1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C )
N/A

CI Slot (Side/Rear)
N/A

HDMI A / Return Ch. Support
Yes

Wireless LAN Built-in
Yes

Anynet+ (HDMI-CEC)
Yes

Pillow Speaker Jack (Side/Rear)
No

Variable Audio Out (Side/Rear)
0/1

Variable Audio Out Volume Control
(Side/Rear)
0/1

Video Out (Side/Rear)
N/A

RJ12 (Side/Rear)
0/1

RJP (Remote Jackpack) (Side/Rear)
0/1

Headphone ID (Side/Rear)
N/A

Door-Eye Control (Side/Rear)
0/1

Door-Eye Video In (Side/Rear)
No

PC In (D-sub)(Side/Rear)
No

PC/DVI Audio In (Mini Jack)(Side/Rear)
No

Ethernet Bridge (LAN-Out)
N/A
Design
Front Color
Charcoal Black

Stand Type
Simple Luminus

Swivel (Left/Right)
N/A
Eco
Energy Efficiency Class
N/A

Eco Sensor
Yes
Power
Power Supply (V)
AC220-240V 50/60Hz

Power Consumption (Max) (W)
215 W

Power Consumption (Energy Saving Mode) (W)
N/A

Power Consumption (Stand-by) (W)
N/A

Power Consumption (Typical)
N/A
Dimension
Set Size without Stand (WxHxD)(mm)
1684.6 x 966.4 x 60.6 mm

Set Size with Stand (WxHxD)(mm)
1684.6 x 1056.5 x 356.1 mm

Package Dimension (WxHxD)(mm)
1871 x 1131 x 234 mm
Weight
Set Weight without Stand (kg)
37.0 kg

Set Weight with Stand (kg)
37.5 kg

Package Weight (kg)
49.3 kg
Accessory
Remote Controller Model
TM1240A

Batteries (for Remote Control)
Yes

Samsung Smart Control (Included)
N/A

Mini Wall Mount Support
N/A

Vesa Wall Mount Support
Yes

User Manual
N/A

E-Manual
N/A

ANT-Cable
N/A

Power Cable
Yes

Quick Install Guide
Yes

Data Cable
No

Stand Mount Kit
No

PureCare Remote(Seamless White Remote)
No

Security Screws
No

Angle Adaptor (for Side RF tuner)
No
