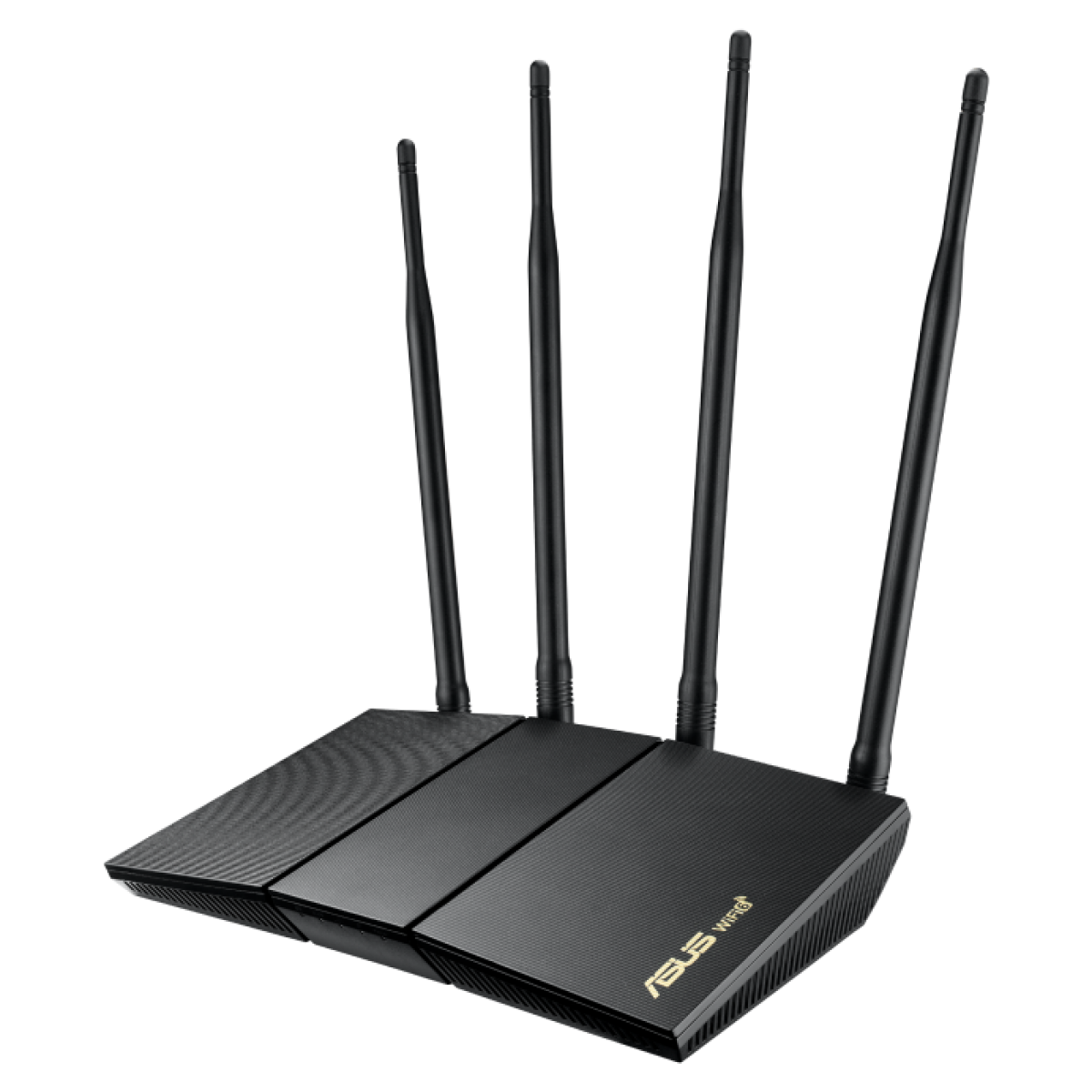

【Discontinued】ASUS RT-AX1800HP Dual Band WiFi 6 Router

New-Gen WiFi Standard – WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.

Ultra-fast WiFi Speed – RT-AX1800HP supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.

Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously

5 Gigabit ports – One Gigabit WAN port and four Gigabit LAN ports, 10X faster than 100–Base T Ethernet.

Protection for Your Home Network – Aiprotection powered by Trend Micro™, blocks internet security threats for all your connected smart devices.

Better Partner with Mesh System- Compatible with ASUS AiMesh WiFi system for seamless whole-home coverage.

Get Your Home Ready for WiFi 6 (802.11ax)

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
*It requires 802.11ax-compatible devices to enjoy the benefits brought by WiFi 6(802.11ax) standard.

Next-Gen WiFi Speed

RT-AX1800HP is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX1800HP is 1.5X faster than 802.11ac 2x2 dual-band routers.

Built for Multi-device Households

With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6(802.11ax) standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.

Better Battery Life for Your Devices

Target Wake Time (TWT) allows RT-AX1800HP to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life

WiFi that Goes Farther

With the latest WiFi 6(802.11ax) standard featuring OFDMA technology, RT-AX1800HP provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home

Protection for your Home Network

RT-AX1800HP incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro™ Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own — such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.

Powerful Whole-home WiFi System.
The Way You Want.

In most cases, your RT-AX1800HP can deliver smooth, reliable WiFi to every part of your home. But WiFi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home WiFi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is WiFi you can rely on — for all your devices, all the time!

Turn your ASUS routers into whole-home WiFi system with a simple firmware update

Mix and match preferred models from selected ASUS routers

Create a WiFi network with either a single SSID or multiple SSIDs

All router features works across the entire WiFi system

Connectivity Options

RT-AX1800HP has one Gigabit WAN port, 4 Gigabit LAN ports. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making RT-AX1800HP your solid digital home hub.

Robust control and optimization with ASUSWRT

With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. With fast setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.

*Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.

Tech Specs

Network Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
AX Technology
Yes
Data Rate
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: Up to 54 Mbps
802.11n: Up to 300 Mbps
802.11ac: Up to 867 Mbps
802.11ax (2.4 GHz): up to 574 Mbps
802.11ax (5GHz): up to 1201 Mbps
Antennas
External Antenna x 4
Transmit/Receive
2.4GHz 2x2
5GHz 2x2
Processor
Dual Core (4 VPE)
Memory
128 MB Flash
256 MB RAM
Speed boost
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: Standards-based universal beamforming
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz/5 GHz
Ports
RJ45 Gigabit BaseT for WAN x 1, RJ45 Gigabit BaseT for LAN x 4
Pushbuttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power Supply x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
Power Supply
AC input: 100 V~240 V (50~60 Hz)
DC output: 12 V, maximum current 1.5A 1.5A current
Package Contents
RT-AX1800HP
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
AiMesh
Yes
Protection
AiProtection Classic
Yes
Parental Control
Yes
Traffic Control
- Traditional QoS
Yes
Wireless
Wi-Fi Encryption: Open System, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal
Yes
WAN
Internet connection type: PPPoE, PPTP, L2TP, Auto IP, Static IP
Yes
Local Area Network
Yes
VPN
Yes
Yes
Administration
Operating mode ： Access point, media bridge, repeater, router
Operating system ： ASUSWRT
Yes
